SNOWBIKE.TECH

Board attachment (with stopper)

Board attachment (with stopper)

Regular price ¥14,300 JPY
Regular price Sale price ¥14,300 JPY
Sale Sold out
Tax included. Shipping calculated at checkout.

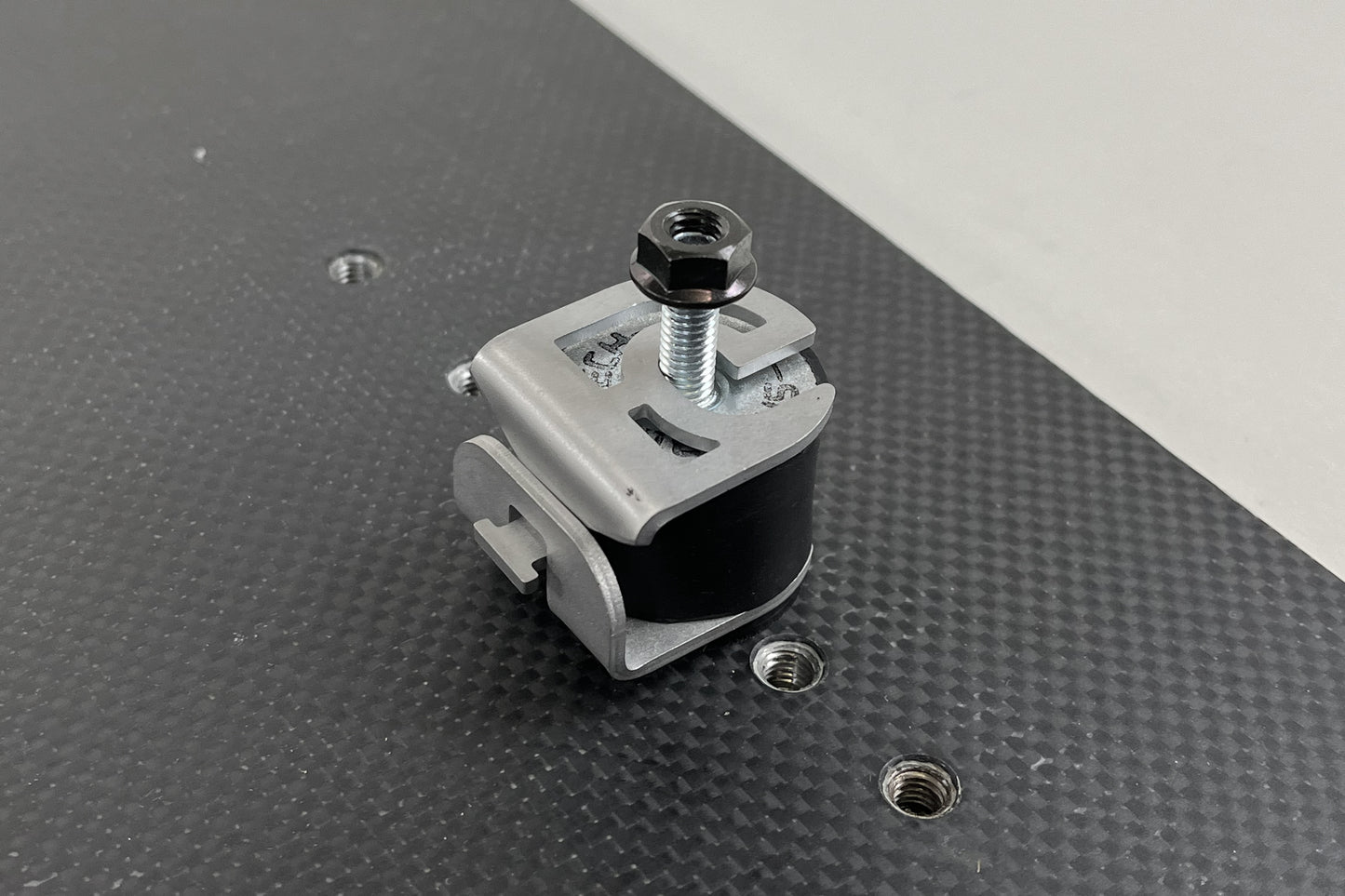

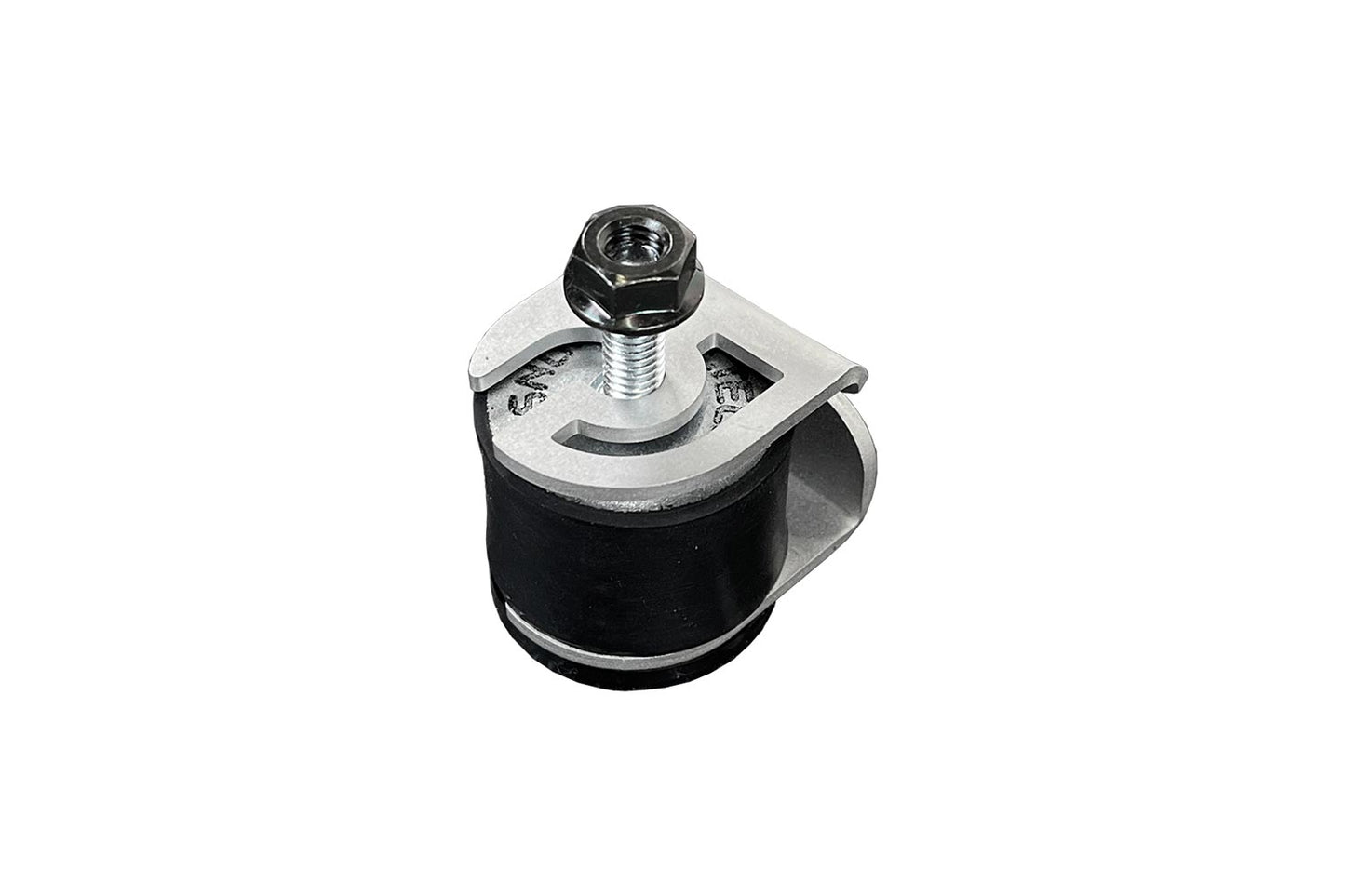

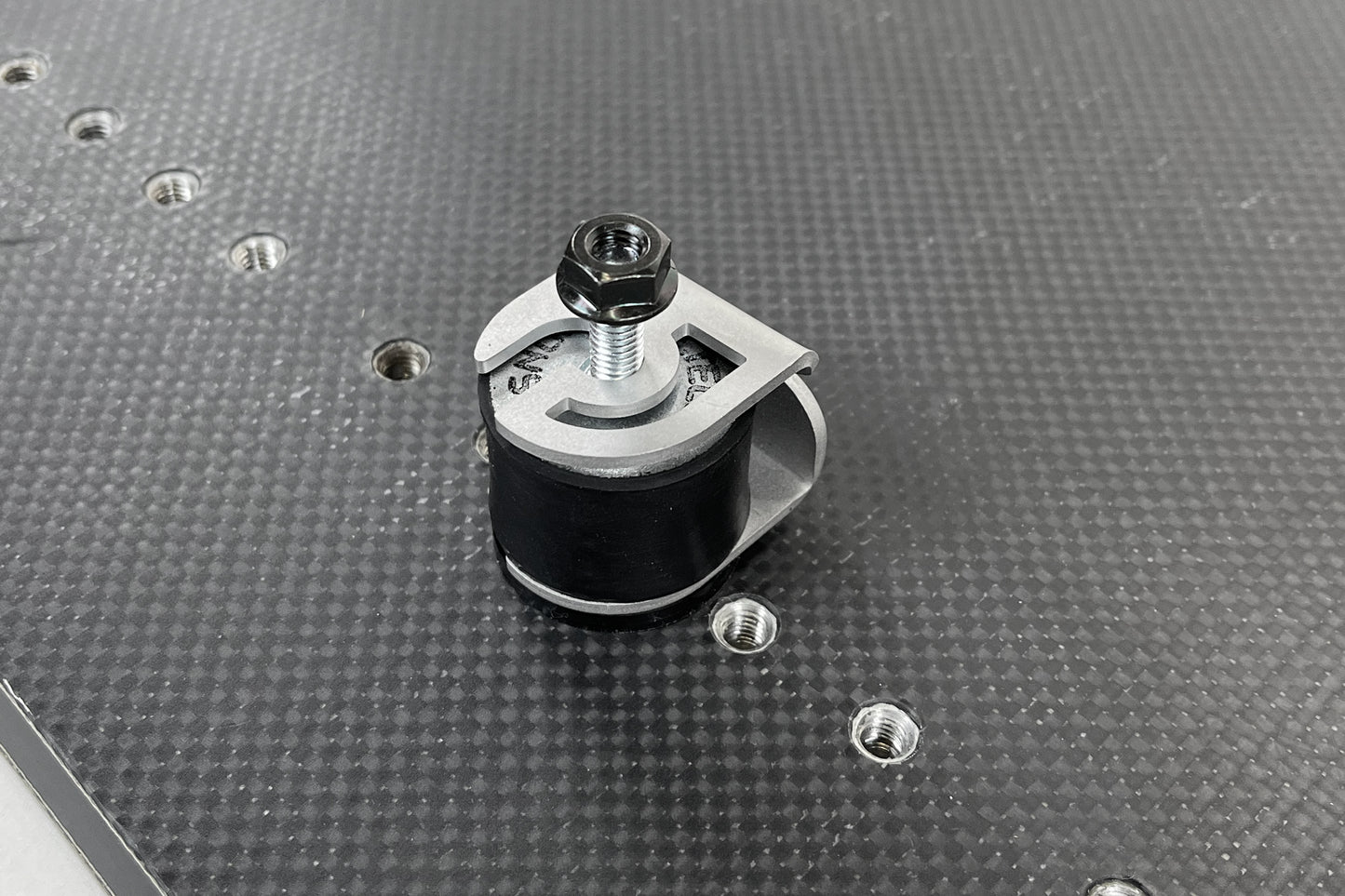

This is an attachment set for attaching the board to the frame. The top and bottom bolts are non-penetrating, so it can be attached without interfering with the movement of the board.

The stopper prevents the bush from stretching, supporting the board's flex while maintaining a direct feel. The stopper also absorbs shear force, which is the main cause of bush breakage, and almost completely eliminates bush breakage.

This attachment is suitable for boards which have become increasingly wider and longer in recent years.

If there is a structural problem or deterioration in the insert part on the board side, the entire insert may come out. The bushing cannot be used alone without removing the stopper.

View full details

Collapsible content

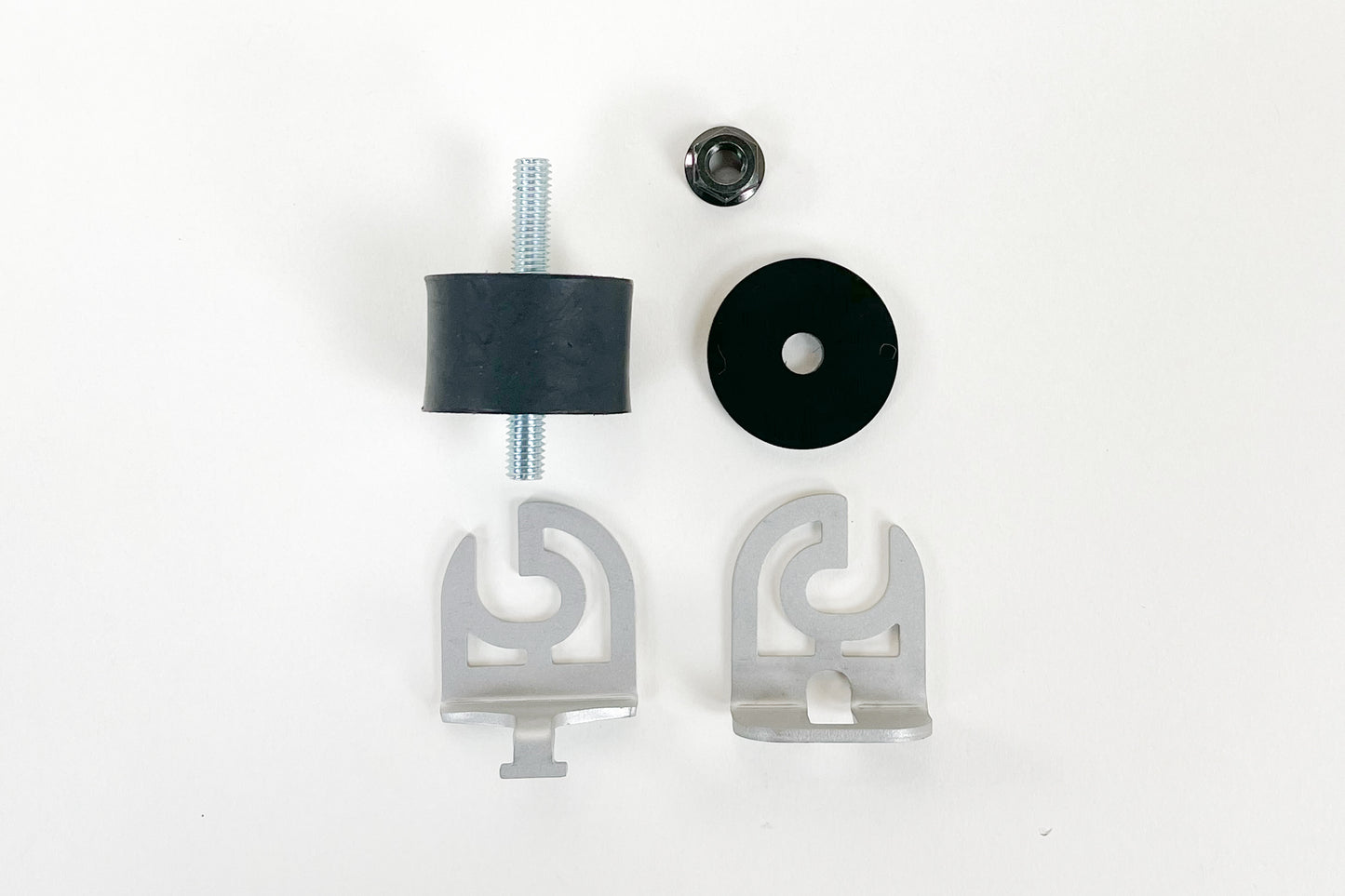

SPEC

Non-penetrating bushing 8 pieces (43g/piece)
Flange nuts 8 pieces (3g/piece)
Resin washers 8 pieces (2g/piece)
Stopper (upper) 8 pieces (12g/piece)
Stopper (lower) 8 pieces (14g/piece)

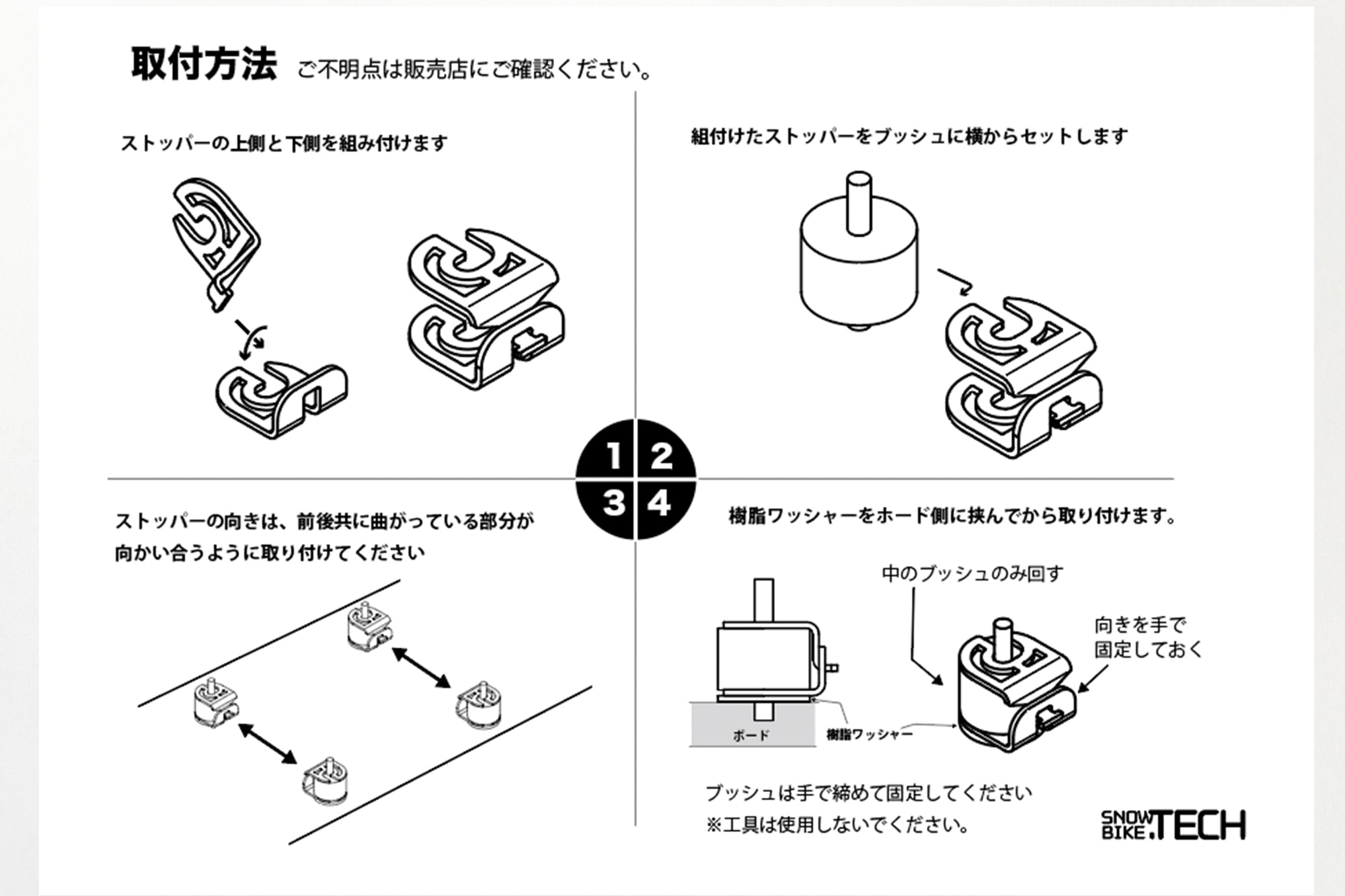

Installation Method

Please install without using any thread locking agent.
