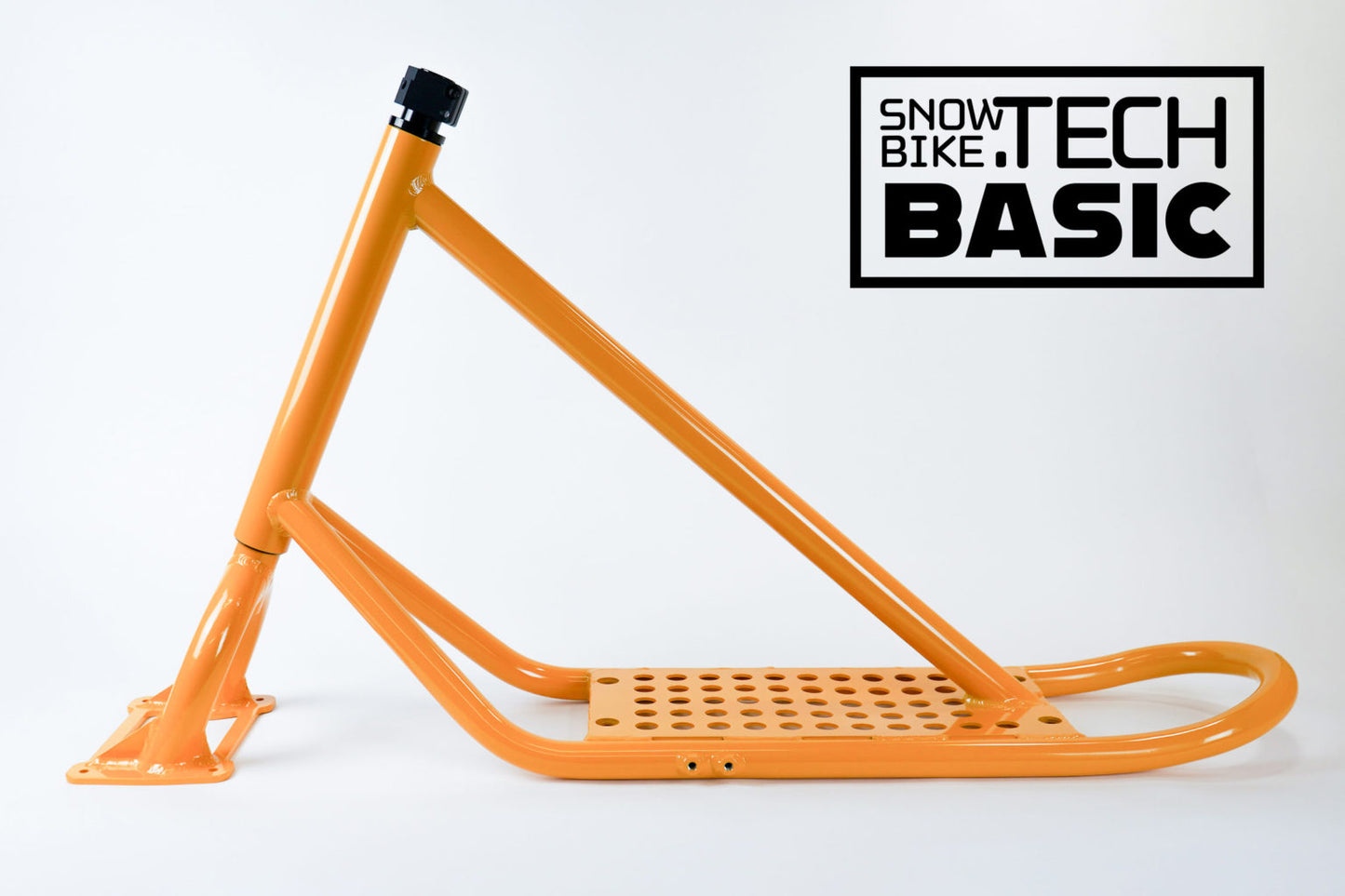

SBT BASIC Frame set
SBT BASIC Frame set
Regular price
¥97,900 JPY
Regular price
Sale price
¥97,900 JPY
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
A high-standard model with high rigidity. A basic frame that incorporates all the necessary performance for skating.
- Extra thick head tube
- Standard simple shape

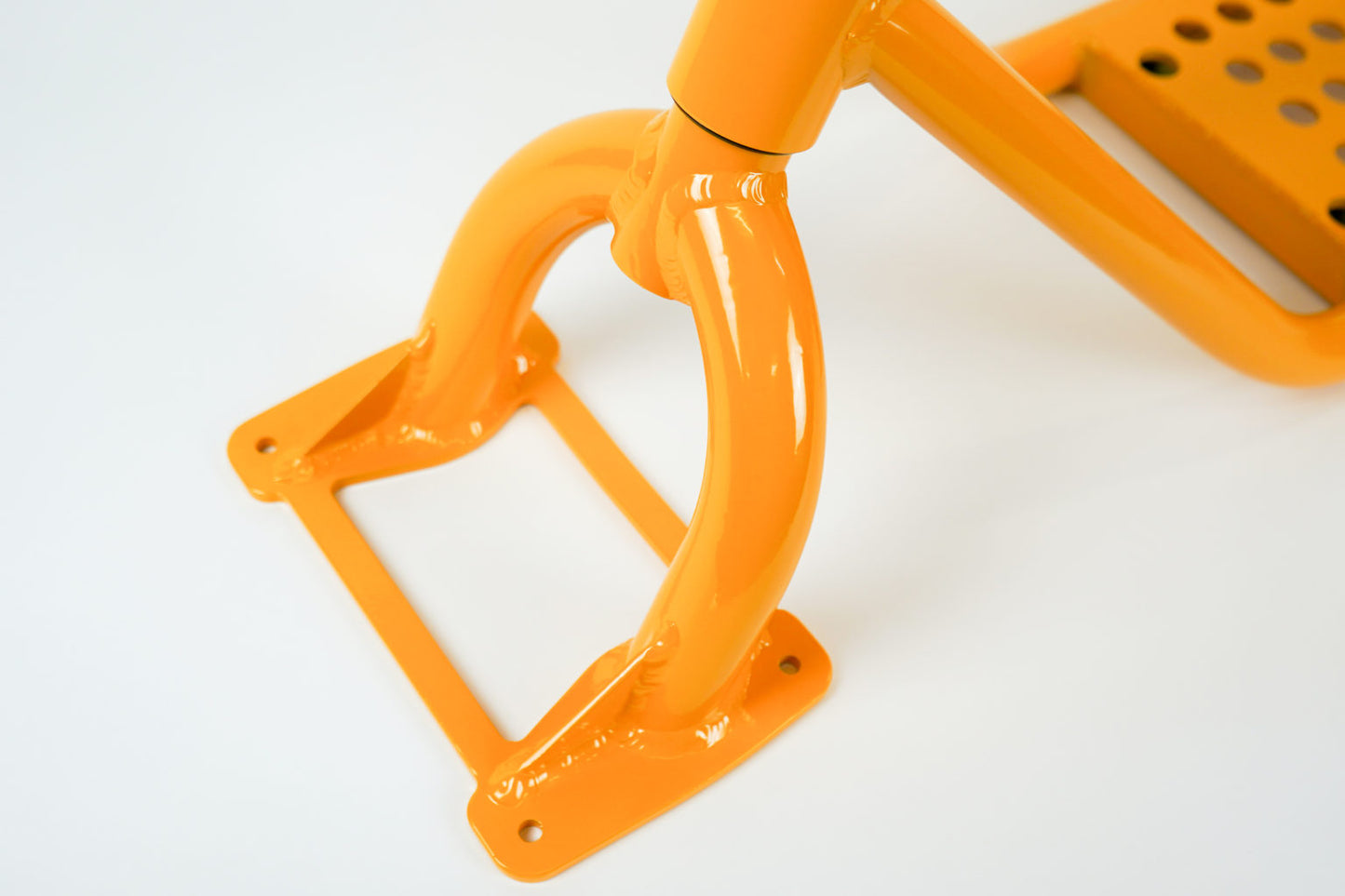

- Wide deck shape and high rigidity low leg fork
- Board pitch F190×110, R120×385 standard

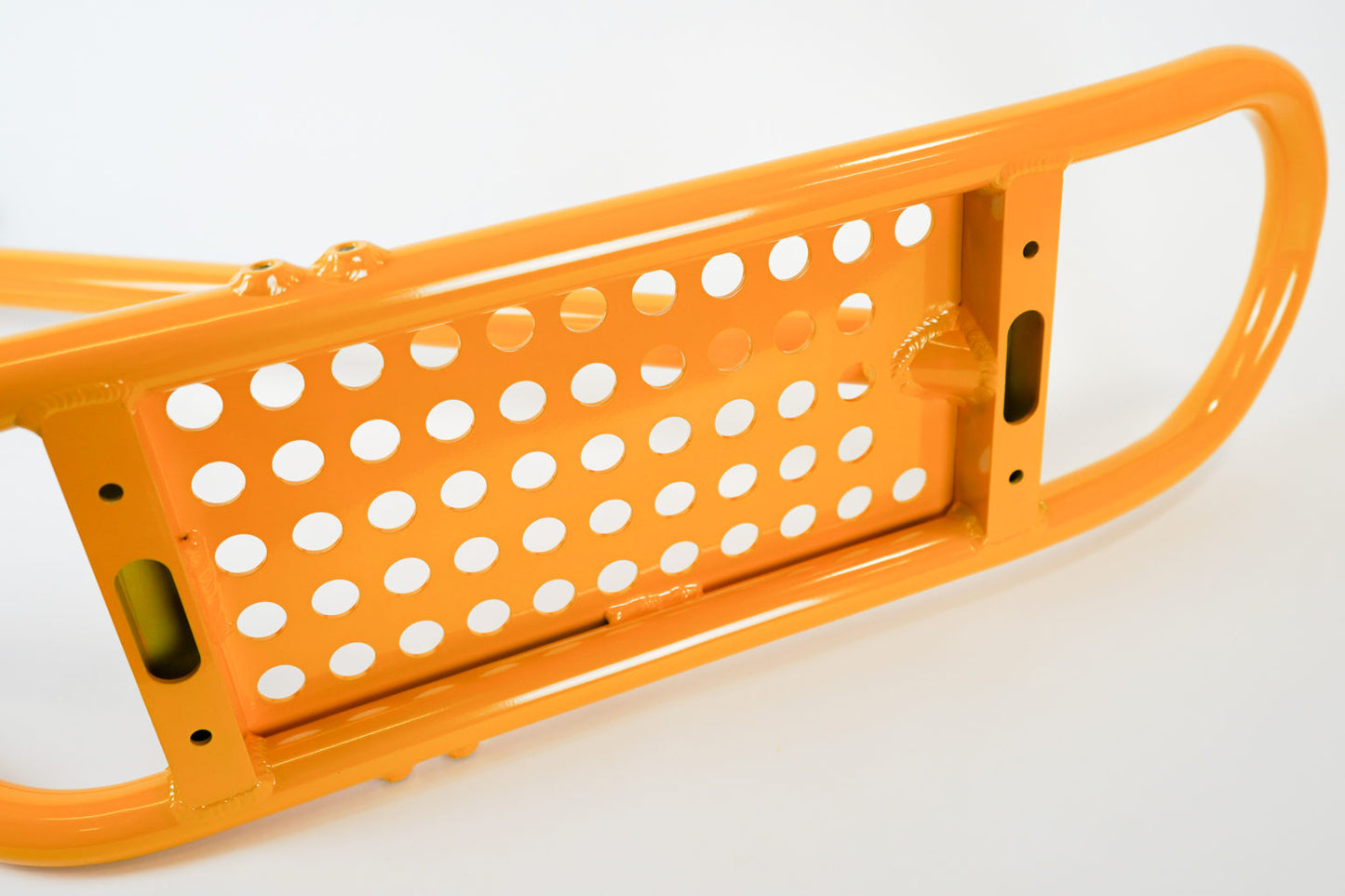

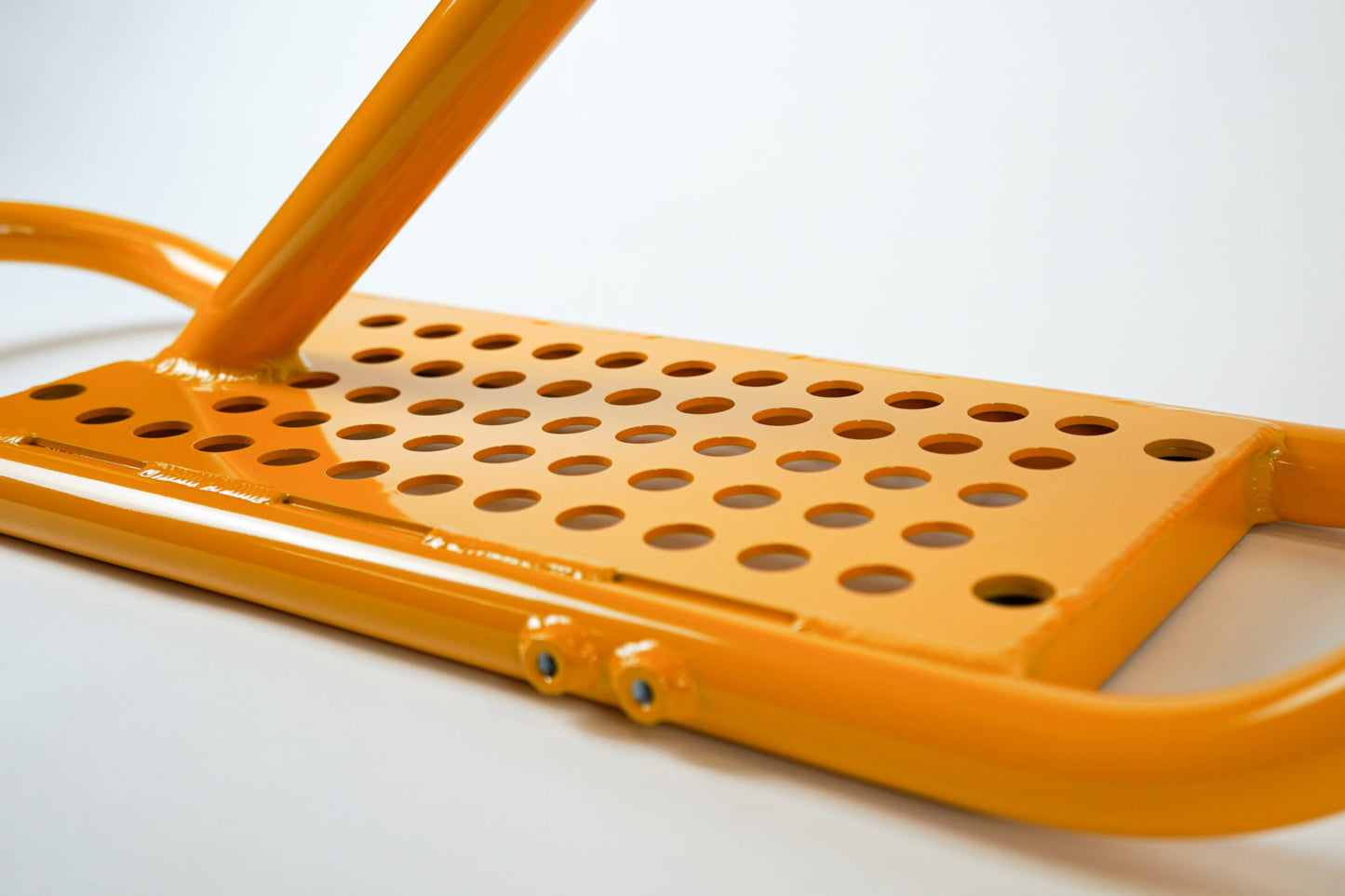

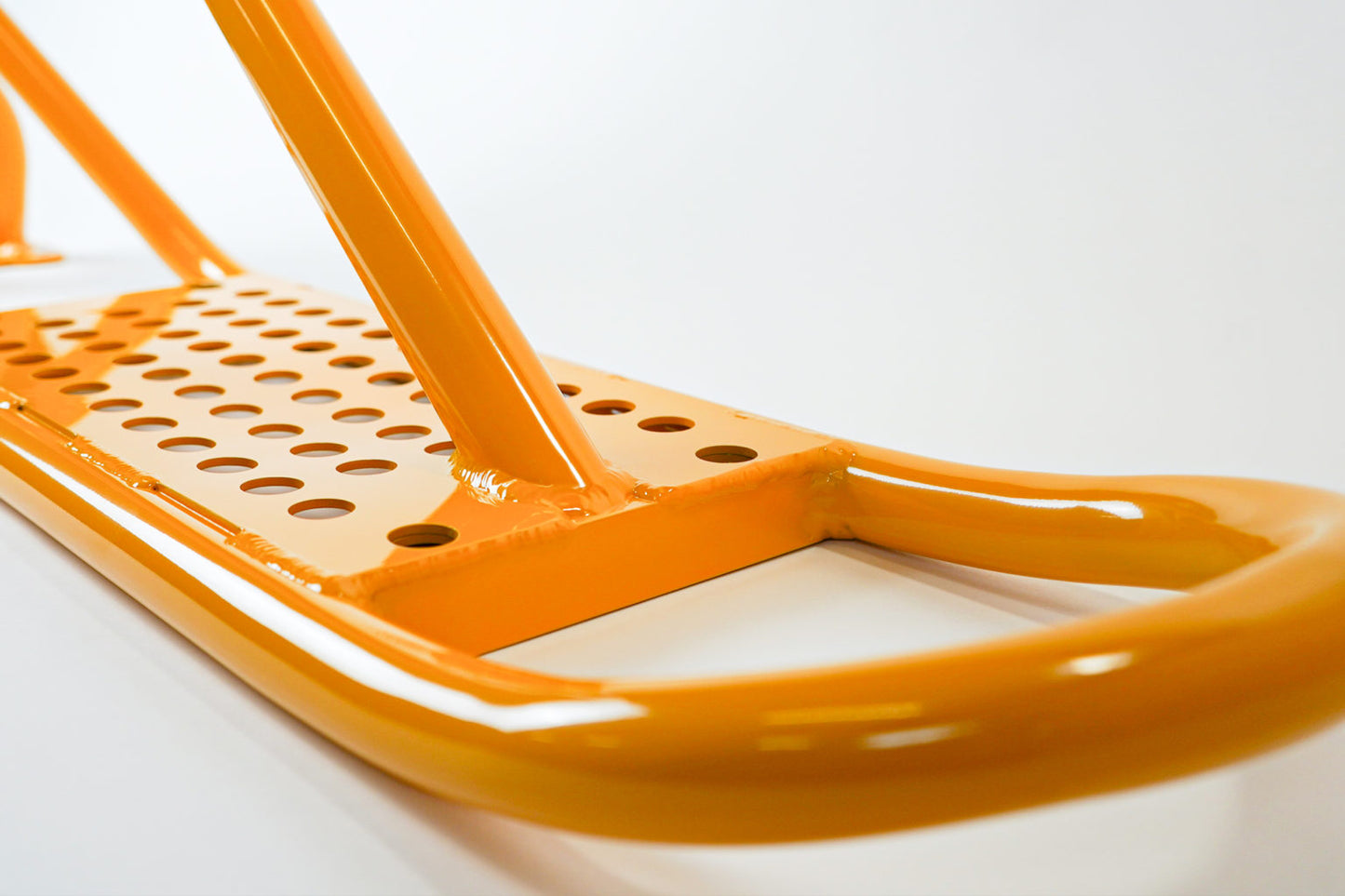

- Lightweight deck plate (perforated type)
- Lightweight original 8.6" aluminum bar installed
- The stem is the latest split type. *Frame set excluded
Supplementary information
- Due to the frame design, the front forks are slightly shorter than the rear forks to make setup easier.
- No-camber boards will be flat when installed as is.
- The board that is mounted on the completed bike is a camber board, so when mounting the board please insert a spacer in front of the rear to adjust it.
- All models come with a tool to assist in tightening the nuts.
- Attach the Velcro type leash cord to the top of the top tube.

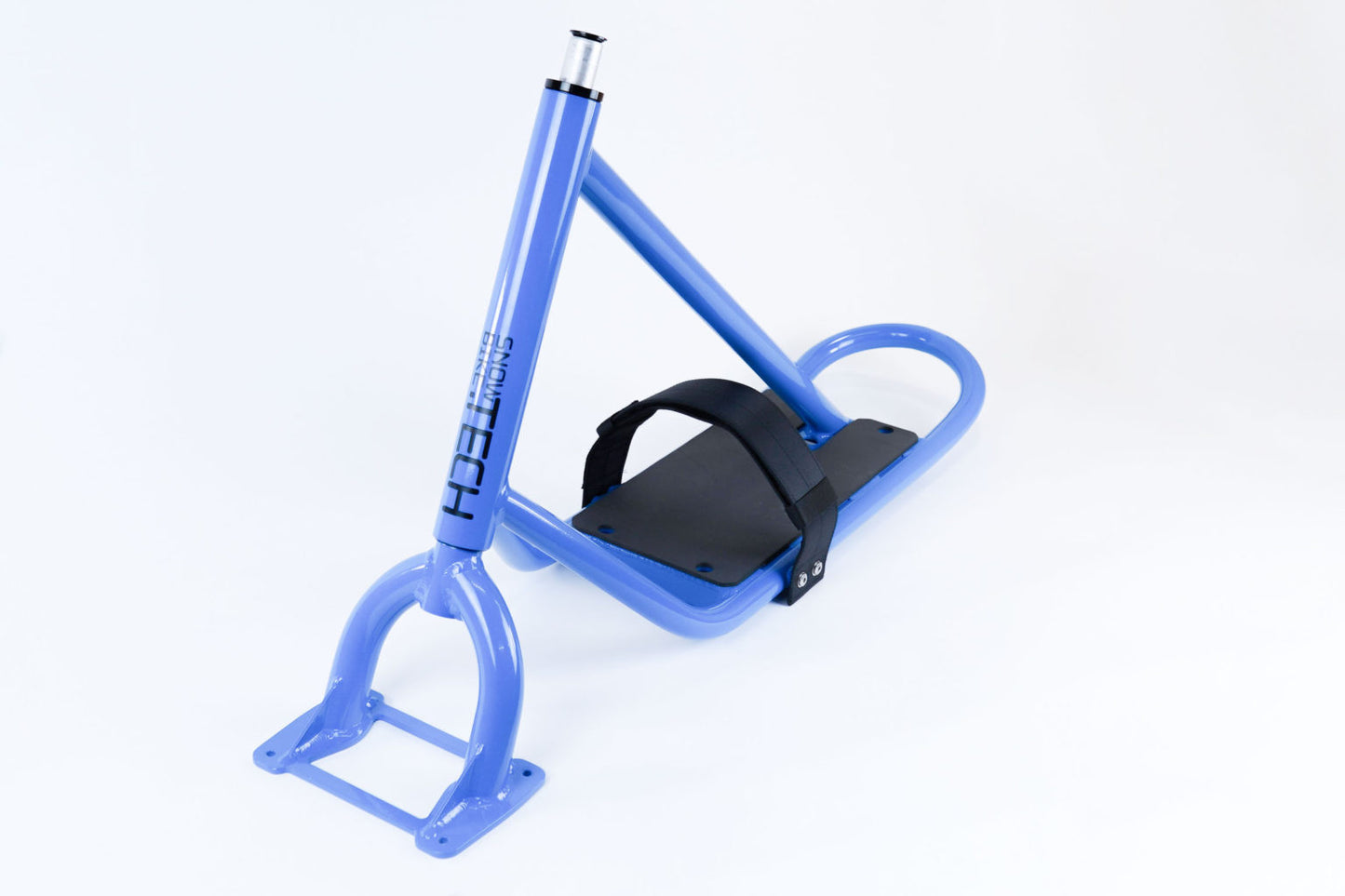

パーツ | フレーム セット |

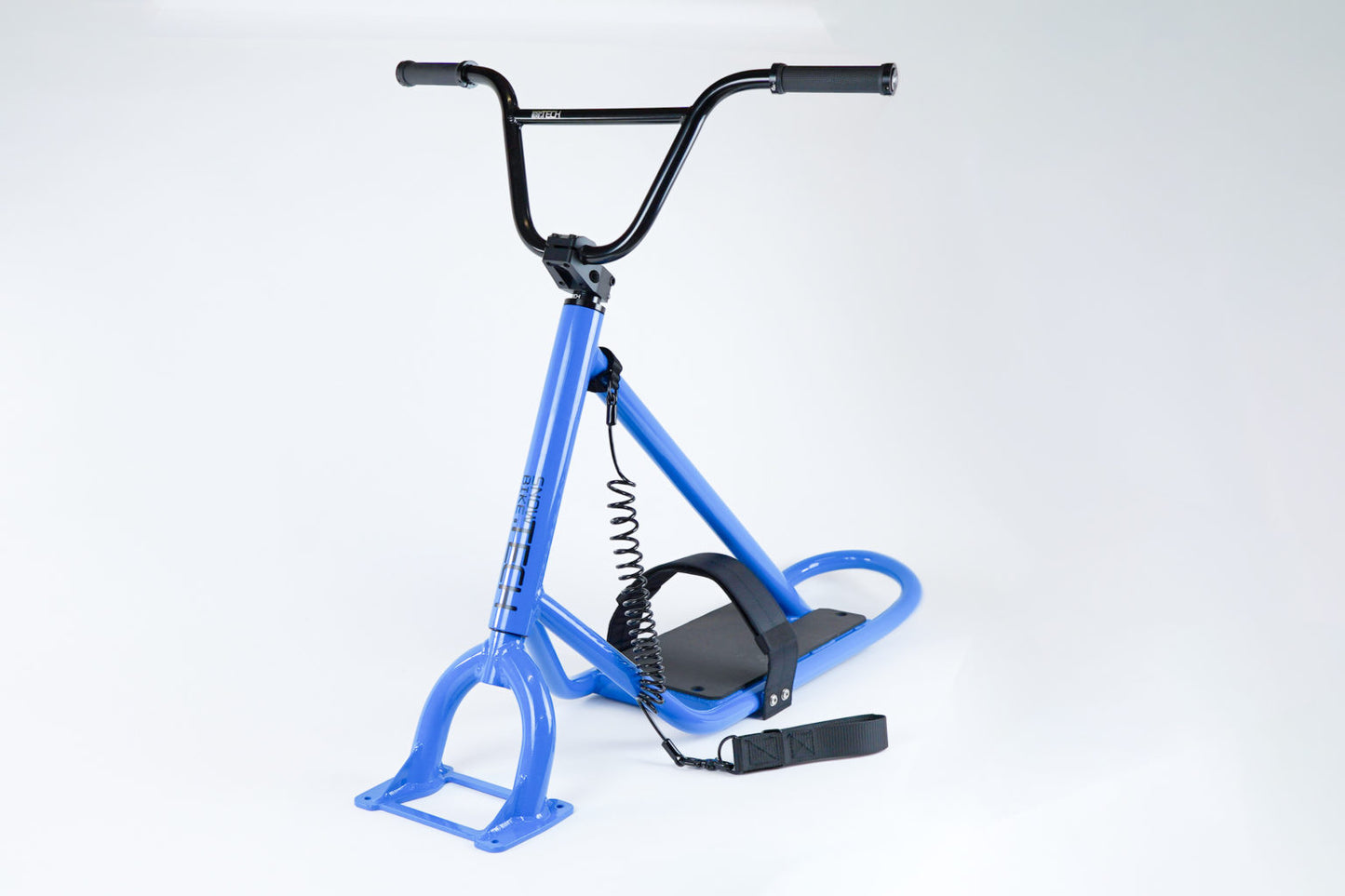

ボードレス セット |

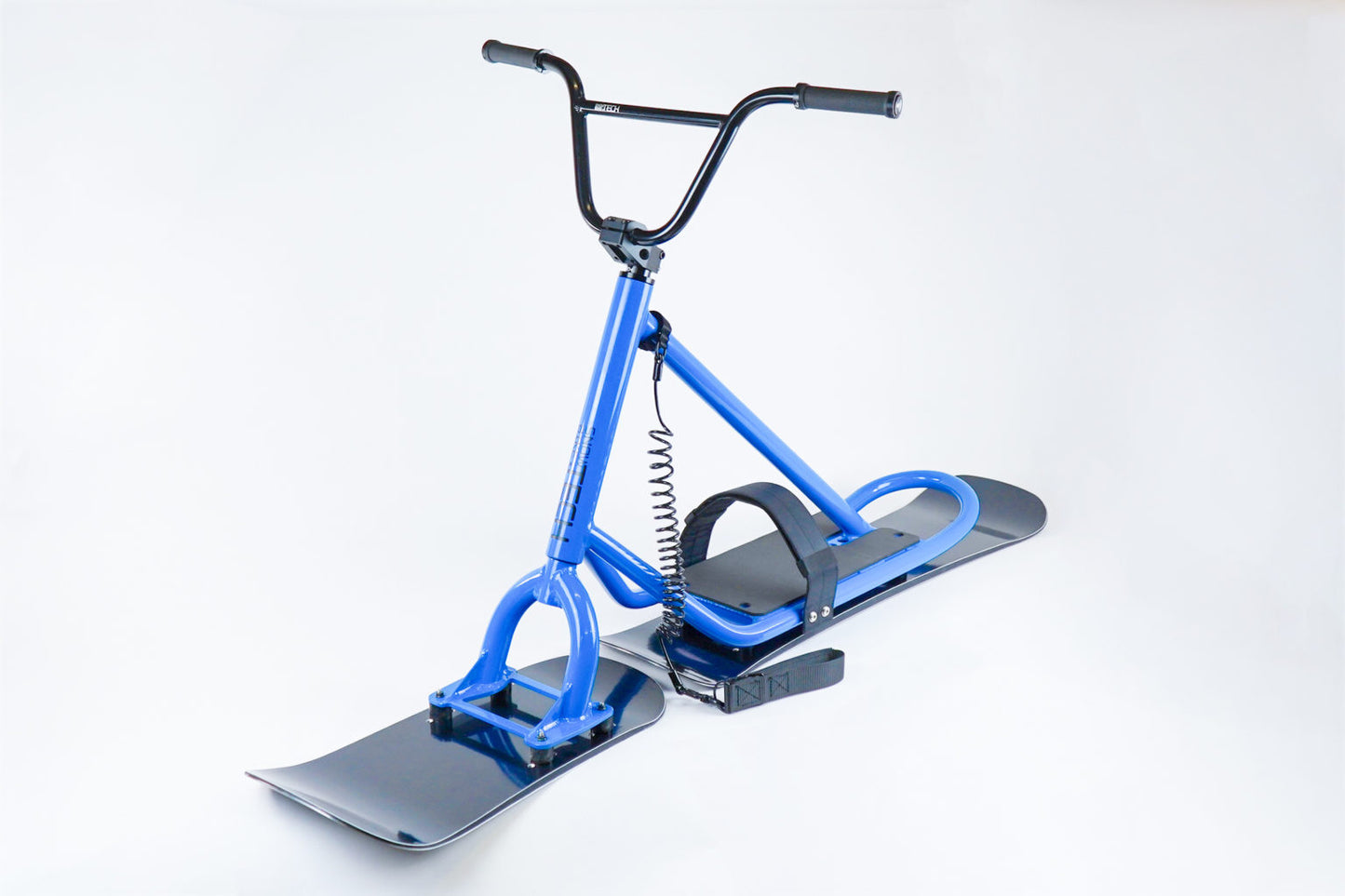

完成車 | 素材 | 重さ | スペック | |
---|---|---|---|---|---|---|---|
1 | フレーム | ● | ● | ● | A6061 | 2,970g | H/A 67.5 インサートピッチ 120*385 |
2 | フォーク | ● | ● | ● | A6061 | 1,025g | H/A 67.5 インサートピッチ 190*110 |
3 | ハンドル | ● | ● | A6061 | 510g | 高さ:8.6" 幅:670mm | |
4 | グリップ | ● | ● | ダブルクランプタイプ | |||
5 | バーエンド | ● | ● | ||||
6 | ステム | ● | ● | A6061 | 360g | 分解型。ユニットステム リーチ:53mm | |
7 | ヘッドセット | ● | ● | ● | インテグラルヘッド 1/-1/8 ゼロスタックタイプ | ||
8 | リーシュコード | ● | ● | ||||
9 | リーシュベルト | ● | ● | ||||
10 | デッキパッド | ● | ● | ● | EVAフォーム | ||
11 | ボトムガード | ● | ● | ● | EVAフォーム | ||
12 | フットストラップ | ● | ● | ● | |||
13 | ブッシュセット | ● | NR | 非貫通ノーマルタイプ | |||
14 | フロントボード | ● | 1,100g | Basic shape/ABS Side wall/Extruded sole/Medium flex | |||
15 | リアボード | ● | ウッドコア | 1,700g | Basic shape/ABS Side wall/Extruded sole/Medium flex | ||
16 | 組み立て工具 | ● | ウッドコア | 10mmボックスドライバー、hexレンチセット |
※重量は参考値です。個体により誤差があります。
